Sku 7083

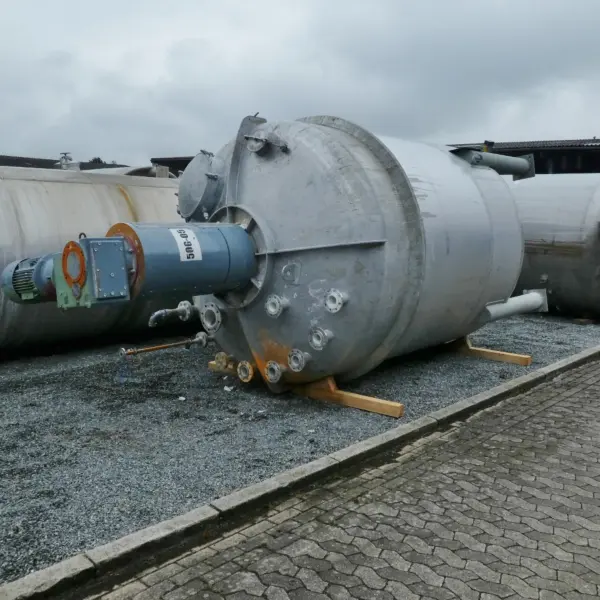

17200 liter mixing tank, Aisi 304, with ex-proof 27 kW blade stirrer
Special Price
€15,000.00
€17,850.00 incl. VAT
Regular Price
€16,900.00
€20,111.00 incl. VAT
Price per piece, excl. VAT
4 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
Hagemann
location
Bremen
condition
used
Vessel
volume
17.200 liter
max. allowable working temperature
100 °C
specific weight of the medium
1.2 (to/m³)
construction
standing
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
2.508 mm
cylindrical height
2.750 mm
total height
6.000 mm
Wall thickness lower bottom
3.5 mm
wall thickness cylinder
4.0 mm
wall thickness of upper bottom
4.0 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 600), handhole
nameplate
outlet
50 mm
notice
some residues of previous content
remarks
outlets partly cut off; one tank (internal no. 7083-2) with 1 dent in the cylinder
latest application
colour industry
Material Composition
material in contact w/ medium
AISI304 1.4301
material legs
mild steel
Agitator
power
17 / 27 KW
output speed
47 / 95 rpm
agitator
blade agitator
voltage
400 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
centrically in the upper bottom
