8974

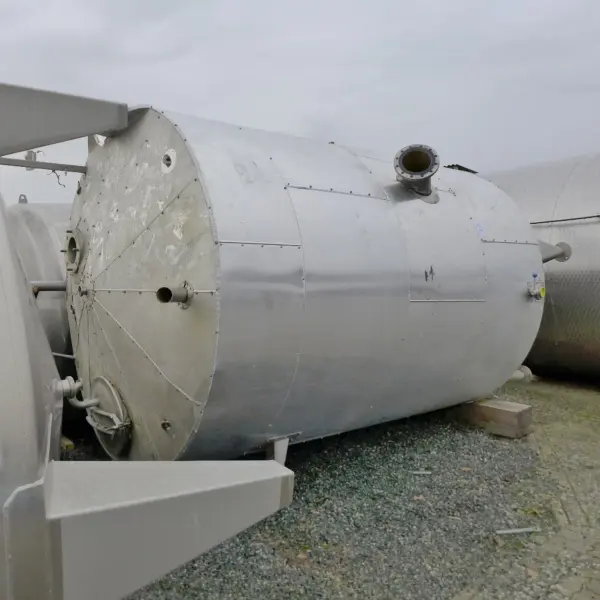

15600 liter heat-/coolable agitator tank, Aisi 304 with blades agitator
€11,700.00
incl. VAT
€13,923.00
Price per piece, excl. VAT
2 pieces on stock
General Information
Hersteller
Behälter KG Bremen
location
Bremen
condition
used
Vessel
volume
15.600 liter
max. allowable working temperature
80 °C
construction
standing
stand type
legs height adjustable
quantity legs
5 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
2.0 bar
Temperature control cylinder (dj)
squared half-coil
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
screwed
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
2.388 mm
diameter outside
2.520 mm
cylindrical height
3.250 mm
total height
5.150 mm
wall thickness bottom
4 mm
wall thickness cylinder
3 mm
Equipment
manhole
in the upper bottom
technical equipment
crane eyes
outlet
available
remarks
Manhole diameter approx. 510 mm; 1 x outlet flange diameter pipe inside 80 mm, 1 x threaded outlet diameter pipe inside approx. 125 mm; 1 lateral agitator was welded into the lower cylinder area from previous operator; the heating coil may have been damaged; Insulation was bolted over the cylinder heating coil heating connections; the thermoplate on the lower floor is cut open on 1 tank and the heater connections have been cut out; Insulation shows damage (dents, sheet metal cuts) and is no longer present on 1 tank around the lower bottom; adhesions inside the tanks
latest application
Pet food
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
0.75 KW
agitator
blade agitator
voltage
400 Volt
agitator positioning
laterally at the cylinder
agitator features
Output 1 x 125 rpm, 1 x 275 rpm
Second Agitator
agitator
flange for stirrer
agitator positioning
eccentrically in the upper bottom
