Sku K0072

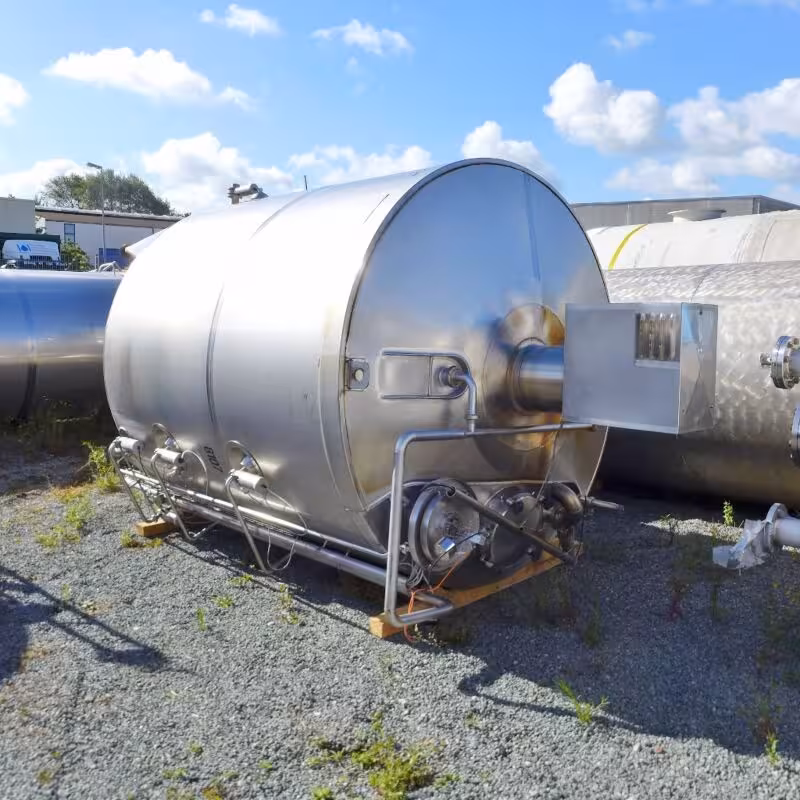

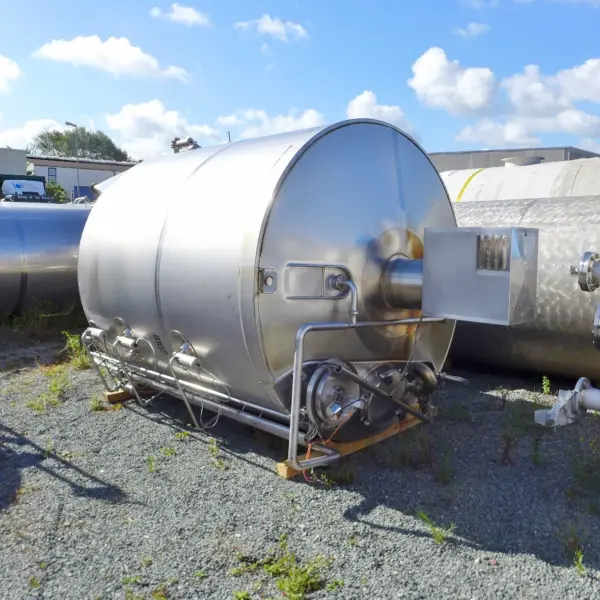

10000 liter heat-/coolable agitator tank / cream tank, Aisi 304 with anchor agitator
€24,500.00
€29,155.00 incl. VAT
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
ABAB Allgemeine Behälter- u. Apparate Bau
location
Bremen
condition
used
Vessel
volume
10.000 liter
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
4.0 bar
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
2.240 mm
diameter outside
2.420 mm
cylindrical height
2.500 mm
total height
4.400 mm
Equipment
manhole
in the upper bottom (Ø 430)
nameplate
technical equipment
spray ball, crane eyes
outlet
available
outlet
65 mm
notice
pipe end cut flush
remarks
1 tank with 1 dent in the insulation jacket in the area of the upper bottom (see photos)
latest application
Dairy
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
2.5 / 3 KW
output speed
8.8 / 18 rpm
agitator
anchor agitator
voltage
400 Volt
agitator positioning
centrically in the upper bottom
agitator features
Agitator data from one of the two tanks; we assume that the agitator data of the other tank are the same or similar
